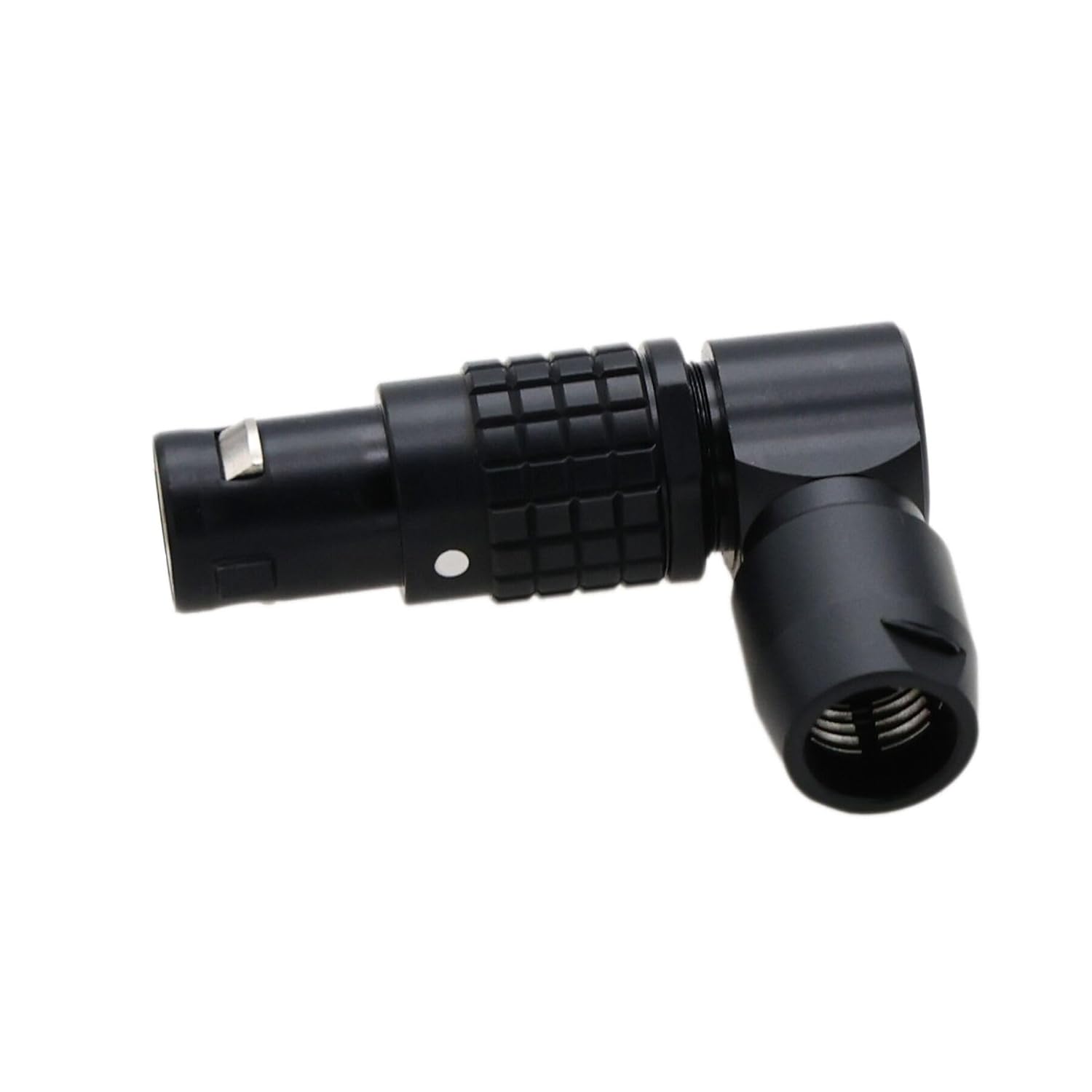

Black 1B FSG 5-Pin 90-Degree Connector, Rotated Adjustable Right Angle Male Circular Push Pull Cable Plug Compatible for LEMO-Type, 22AWG 9A

Compatible for LEMO-type 1B FGG EGG FSG FHG PHG connectors.Contacts: 2 3 4 5 6 7 8 10 12 14 16 Wire diameter max: 2-3pin: 20AWG; 4-8pin: 22AWG; 10-16pin: 28AWG Cable Outer Diameter Range: 3mm-8mm Protection Rating: IP50 Shell Material: Brass chrome platedContact Material: Brass gold plated Termination: Solder Mating Cycle: >4000 times Temperature Range: -45~+125℃We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).

• Black 90-degree right angle 5 pin male connector, compatible for LEMO-type 1B.FSG.305, right angle and adjustable rotated. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
• Rated current: 9 Amps. AWG wire size: 22, cable diameter: 2.5mm-7.9mm. Contact diameter: 0.9 mm, stranded conductor section: AWG 22 max
• It is widely used in area of audio video, energy and industrial, medical, semiconductor, specialties and other, test and measurement, transportation, aerospace and UAV
• Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
• Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
